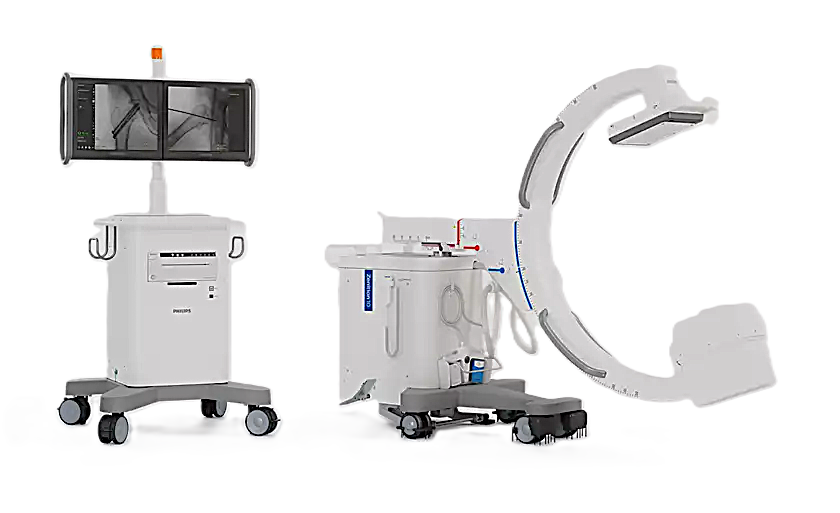

Zenition 10

Mobile C-arm with Flat Detector

Power the future of routine surgeries with Philips Image Guided Therapy Mobile C-arm System 1000 – Zenition 10. This Flat Detector (FD) system offers high quality imaging, high uptime and an efficient workflow in a powerfully compact design for your daily mix of orthopedic, trauma and other procedures.

Specifications

X-ray generation
X-ray generator	Monoblock 40 KHz high frequency generator
X-ray tube	Fixed Anode (tube)
Maximum generator output	2.1 kW

Flat detector
Flat detector	Trixell amorphous silicon detector
Matrix size	FD11: 1024 x 1024 pixels
Detector Area	FD11: 20 cm x 20 cm (7.9" x 7.9")
Pixel pitch	200 µm

Connectivity

Digital video out (optional)

2 DVI connectors left and right monitor

USB storage

PNG, MP4, BMP

Advanced DICOM/IHE package (optional)

Modality Worklist Management, Modality Performed Procedure Step, Storage Commit, DICOM query/retrieve

Configuration

Pain Extension	1
Paediatric Extension	1
Built in UPS	1
DVI-out	1
Video Paper Printer	1
Medical Keyboard and Mouse	1
Laser Alignment Device FD side	1
Wire Footswitch	1
Printed IFU Required	1
Remote Control	1
Spring Bow for C-Arc	1
Sterilizable Covers	1

Bonus: Comen WH1 Operating Table

Need Quotation
