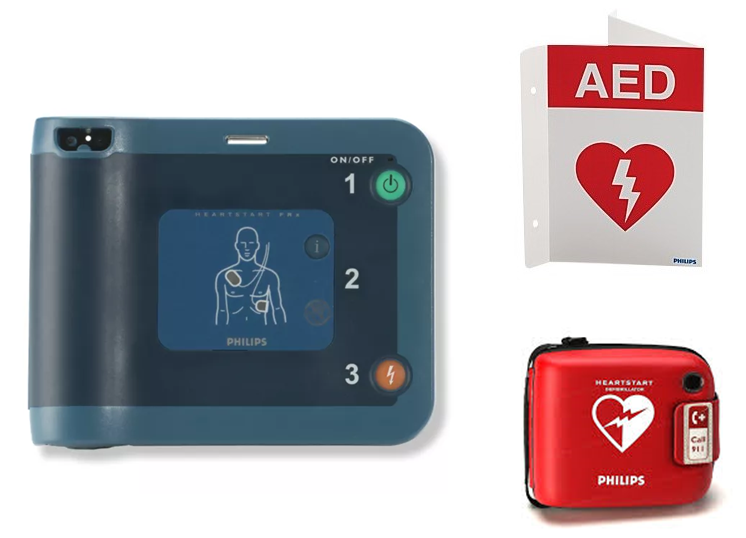

HeartStart FRx AED

PHILIPS

HeartStart FRx

Automated external defibrillator

The Philips HeartStart FRx defibrillator features intuitive, step-by-step voice instructions, including CPR guidance, and an audible metronome to help guide basic life support (BLS) responders while treating a suspected sudden cardiac arrest (SCA) Pre-connected SMART Pads II can be used for both adults and children. Rugged, lightweight and reliable, it can withstand rough handling and extreme temperatures. When every minute counts, Philips HeartStart FRx is the partner by your side. Side by side. Step by step.



Features

Patented technology. Proven therapy.

Real-time, step-by-step voice commands paced to your actions, and an audible metronome and CPR guidance assist the responder. When treating an infant or child, simply insert the optional infant/child key and the FRx adjusts instructions and therapy.

Easy as 1–2–3

Patented Quick Shock feature allows the FRx to typically deliver a shock within 8 seconds after CPR.1 Studies show that minimizing time to shock after CPR may improve survival..2-5
1. Press the green On/Off button, which activates voice instruction
and visual icons.
2. Place the pads on the patient as directed.
3. When advised by the device, press the orange Shock button.

Designed to work where you need it

Lightweight, rugged and reliable, the Philips HeartStart FRx defibrillator can withstand rough handling, extreme temperatures, and dusty or wet surfaces. Designed for use in harsh settings, it can withstand up to 500 kg (1,100 lbs) and drops from 1.2 m (4 ft).

Simplified maintenance

Pre-connected SMART Pads II can be used for both adults and children. Once installed and activated, the FRx is easy to maintain. It performs a series of automatic self-tests, daily, weekly, and monthly to check pad readiness and verify functionality and calibration of circuits and systems. It can last up to four years between battery replacements.


Specifications

Environmental - HeartStart FRx
Temperature
  • Operating/Standby:32° - 122° F (0° - 50° C)
EMI (Radiated/Immunity)
  • CISPR II Group I Class B, IEC 61000-4-3, and IEC 61000-4-8
Sealing
  • Waterjet proof IPX5 per IEC60529
    Dust protected IPX5 per IEC60529
Altitude
  • 0 to 15,000 feet
Aircraft
  • Device: RTCA/DO-160D;1997
Crush
  • 500 pounds
Vibration
  • Operating: meets MILSTD 810F Fig.514.5C-17, random
    Standby: meets MILSTD 810F Fig.514.5C-18,swept sine.

Product specifications
Model Number
  • 861304
Battery
  • Standby life (after insertion): Typically 4 years when stored and maintained according to directions provided in Owner’s Manual.
Therapy
  • Adult defibrillation peak current: 32A (150J nominal) into a 50 ohm load. Pediatric defibrillation (with optional Infant/Child Key installed): 19A (50J nominal) into a 50 ohm load.
Waveform
  • Truncated Exponential Biphasic. Waveform parameters adjusted as a function of each patient’s impedance.
Protocol
  • Device Protocol follows preconfigured settings. Defibrillation and CPR protocol can be customized using HeartStart Configure software.
Quick Shock
  • Able to deliver a shock after the end of a CPR interval, typically in eight seconds.

Physical requirements
Size
  • 2.4 x 7.1 x 8.9 inches (6 x 18 x 22 cm) H x D x W
Weight
  • With battery and pads case: 3.5 lbs (1.5 kg)
    Without battery or pads case: 2.6 lbs (1.2 kg)
