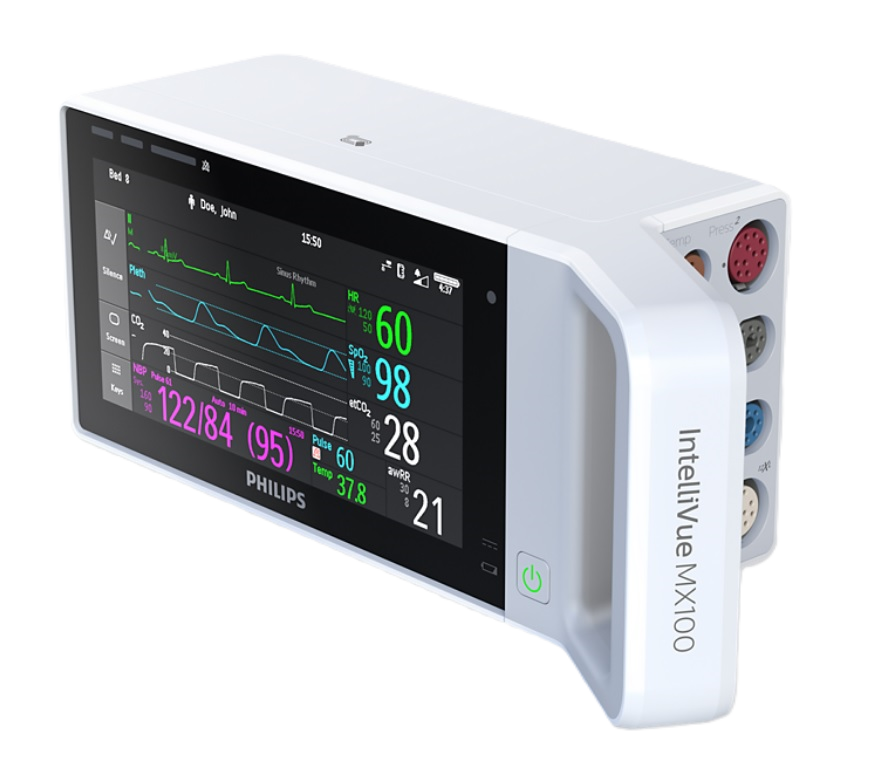

IntelliVue MX100 Patient Monitor
IntelliVue MX100
Patient monitor
The IntelliVue MX100 is a flexible, reliable way to monitor patients on the move - and at the bedside - with a single, portable, stand-alone monitor, It is small and light, yet offers a broad, scalable set of clinical measurements. This rugged, battery-powered device features a built-in 15.5cm (6.1") touchscreen and familiar smartphone-like operation for ease of use.
Features
Easy to use
An intuitive 15.5cm (6.1") touchscreen with a familiar smartphone-style operation makes the IntelliVue MX100 fast to learn and easy to use. Simply swipe your fingers through a broad selection of screens tailored to various clinical situations. You can also customize each screen to display exactly what you want to see.
Rugged and ready
The MX100 is built with a sturdy structural design, robust housing, and its medical-grade display features Antimicrobial Corning® Gorilla® Glass². A solid, ergonomic handle makes the MX100 easy to carry, while protecting both the display and measurement connectors. It is all designed to help ease the burden of equipment downtime and associated repair costs.
Support for infection control cleaning protocols
Any equipment that comes into contact with your patients must meet your organization’s highest standards for infection control. That is why every MX100 surface is made from innovative, chemical-resistant materials – including the Antimicrobial Corning® Gorilla® Glass display. You can use aggressive disinfectants³ without damaging your monitors.
Protecting your investment
A common IntelliVue monitoring interface across every department and level of care helps reduce the need for training. The MX100 is compatible with your IntelliVue measurement extensions, Patient Information Center, clinical network infrastructure, and other monitoring components? easing it's incorporation into your existing monitoring systems.
Specifications
-
Physical Specifications Weight -
1.4 kg (3.1 lb) incl. options, battery pack and handle
Size (with handle) -
249 x 97 x 111 mm (9.8. x 3.8 x 4.4 in)
-
-
Display Description -
Active matrix color LCD display with capacitive multi-touch screen
Size -
15.5cm (6.1in)
Resolution -
1024 x 480
Number of measurement waves -
up to 5
Supported screen orientations -
0° / 90° / 180°
Screen -
Antimicrobial Corning® Gorilla® Glass
-
-
Measurements Basic -
ECG;
-
SpO? (choice of Philips FAST-SpO2, Nellcor OxiMax SpO2, Masimo rainbow SET SpO2);
-
Respiration;
Optional: -
2 invasive pressures, CO2
With IntelliVue measurement extensions -
Up to 4 Invasive Pressures and 2 temperatures;
-
Covidien Microstream CO2;
-
Repironics Mainstream CO2 or LoFlo sidestream CO2
-
-
Battery Capacity -
5 hours (basic configuration)
-
-
Ruggedness Disinfection -
Highly disinfectant-resistant surface materials
Mechanical ruggedness -
7M3
Intellivue MX100 PN Description Qty Remarks 867033 IntelliVue Patient Monitor MX100 1 N/A 867033_A03 A03 3-waves capability 1 867033_B26 B26 ECG,NBP,SpO2,2xP,Temp 1 867033_SP1 SP1 FAST SpO2 1 867043 IntelliVue Dock 1 867043_SN3 SN3 Sync Signal Cable 1 M1971A CBL 5 Leadset, Grabber, IEC, ICU 1 M1668A CBL 5 Lead ECG Trunk, AAMI/IEC 2.7m 1 40493E Adult Foam ECG Electrode, Disposable 1 M1191BL Reusable Adult SpO2 Sensor 1 M4555B Easy Care Cuff, 1 Hose, Adult (1) 1 989803209771 Adult NIBP Air Hose 3.0m 1 989803203581 Skin Temperature Probe, Reusable 1 -
